| Form Factor |
Mini-ITX bare-bone system |
| Construction |
Heavy-Duty steel |
| Mini-ITX Board / CPU |
Inside Motherboard : LV-67F series
Support CPU : Intel® Core™ i7/i5/i3 mobile with integrated graphic |
| Drive Bay |
External : 1 x Slim CD-ROM Space
Internal : 1 x 2.5" HDD Space |
| Extensive slot |
1 x PCIE x16 slot
( Re-check the power consumption & physical issue before purchase )
1 x slot room for Mini-PCI or Mini-PCIe daughter board |
| Thermal Control |
One 6 cm system cooling Fan |
| Front Panel |
Power on switch
System Reset switch
LED forPower On/Off and HDD activity
2 x USB ports
Mic-in / Ear phone |

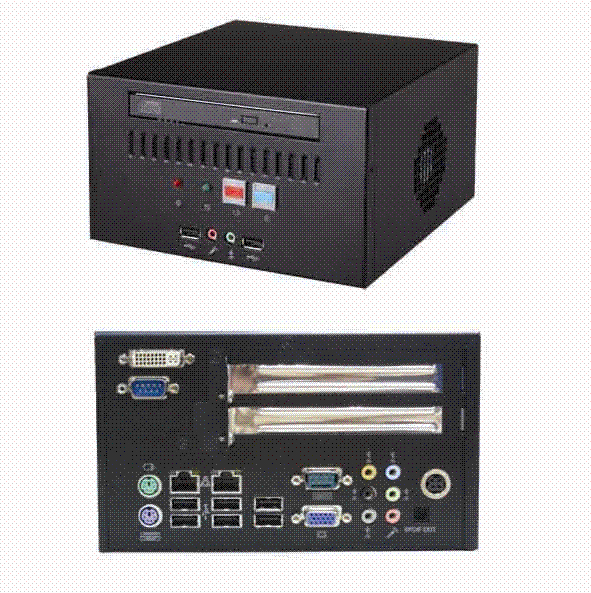

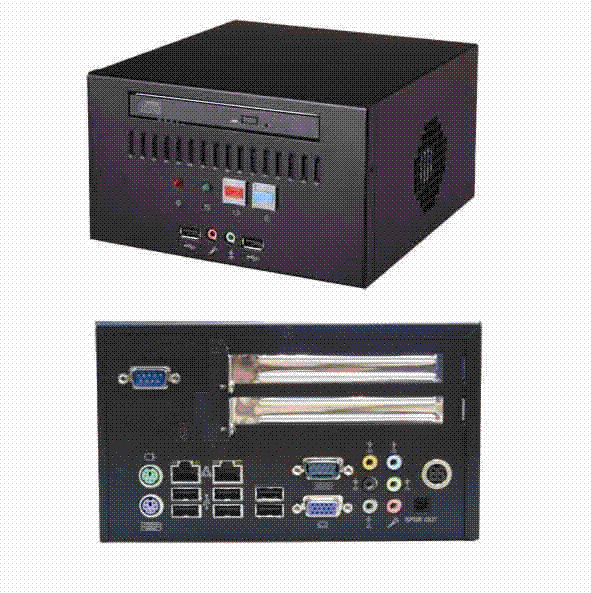

| Rear Side I/O |
CMB-67FX
CMB-67FXD
CMB-67FXT |
| Environment |
Operating Temperature: 0 ~ 50ºC |
| Power supply |
12V/ 80W adapter with 4-pin Mini DIMM |
| Dimension |
199 x 189 x 110 mm |
| Weight |
1.31 kgw , (Without HDD, CPU cooler ) |
