產品名稱：
|
nikkidenso伺服電機
|
|
型 號：
|
NA80
|
|
價 格：
|
0.00
|
|
品 牌：
|
2499
|
|
|
|

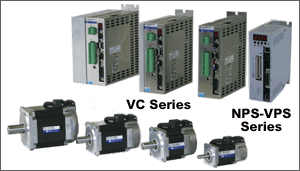

NIKKI DENSO 伺服電機
同步式交流伺服電機NA80系列，功率范圍包括從50瓦至750瓦（3000轉）。他們配備了17bit編碼器，它可以轉換為絕對編碼器。從50W到400W電機可用于VPS系列新型多功能伺服驅動器，使NA80系列表現出其最佳性能。
|
|
|
Servo motor type |
NA80-05 |
NA80-10 |
NA80-20 |
NA80-20 |
NA80-40 |
NA80-60 |
NA80-75 |
|
Power voltage |
V |
AC100V |
AC200V |
|
Motor frange size |
mm |
40 |
60 |
60 |
80 |
|
Reted output |
W |
50 |
100 |
200 |
200 |
400 |
600 |
750 |
|
Reted torque |
N.m |
0.159 |
0.318 |
0.64 |
0.64 |
1.27 |
1.91 |
2.39 |
|
Kgf.cm |
1.62 |
3.25 |
6.5 |
6.5 |
13.0 |
19.5 |
24.4 |
|
Peak output torque |
N.m |
0.48 |
0.95 |
1.91 |
1.91 |
3.82 |
5.73 |
7.16 |
|
Kgf.cm |
4.9 |
9.7 |
19.5 |
19.5 |
39 |
58.5 |
73 |
|
Rated speed |
r/min |
3000 |
|
Maximum speed |
r/min |
5000 |
|
Rated power rate |
kW/s |
13.6 |
29.5 |
21.8 |
21.8 |
47.3 |
41.8 |
53.4 |
|
Rated current |
A rms |
1.1 |
1.8 |
3.5 |
1.7 |
3.3 |
4.4 |
5.0 |
|
Peak Maximum current |
A rms |
3.1 |
5.3 |
10 |
5.6 |
9.7 |
12.9 |
14.5 |
|
Torque constant |
N.m/A±10％ |
0.16 |
0.19 |
0.20 |
0.39 |
0.40 |
0.45 |
0.50 |
|
Kgf.cm/A |
1.64 |
1.88 |
2.00 |
3.99 |
4.05 |
4.58 |
5.08 |
|
Mechanical constant |
ms |
0.9 |
0.7 |
0.9 |
0.9 |
0.6 |
0.6 |
0.6 |
|
Electrical constant |
ms |
1.1 |
1.6 |
3.3 |
3.2 |
3.8 |
6.0 |
4.8 |
|
Rotor inertia |
Gf.cm.s |
0.019(0.029) |
0.035(0.045) |
0.18(0.28) |
0.18(0.28) |
0.34(0.44) |
0.87(1.10) |
1.07(1.29) |
|
kW/s |
0.019(0.030) |
0.035(0.046) |
0.19(0.28) |
0.19(0.28) |
0.35(0.45) |
0.89(1.12) |
1.09(1.32) |
|
Shaft friction torque |
N.m Max |
0.02(0.04) |
0.04(0.07) |
0.04(0.07) |
0.08(0.14) |
|
Kgf.cm Max |
0.2(0.4) |
0.4(0.7) |
0.4(0.7) |
0.8(1.4) |
|
Play in thrust direction |
mm Max |
0.2 |
|
Allowable radial load |
N |
78.4 |
196 |
196 |
343 |
|
kgf |
8 |
20 |
20 |
35 |
|
Allowable thrust load |
N |
39.2 |
68.6 |
68.6 |
98 |
|
kgf |
4 |
7 |
7 |
10 |
|
Encoder |
|
17bit Absolute/incremental |
|
Weight |
kg |
0.4 (0.6) |
0.5 (0.7) |
0.9 (1.4) |
0.9 (1.4) |
1.3 (1.8) |
2.2 (3.1) |
2.5 (3.4) |
|
Insulation class |
Class F |
|
Insulation voltage |
AC1500V for 1 min. |
|
Insulation resistance |
DC 500V, 100ＭΩor higher |
|
Environment |
Temperature |
０～40度 |
|
Humidity |
85％RH or lower No condensing |
|
Store temperature |
－10～85度 |
|
Protection class |
IP65except the connector, and shaft area |
|
Vibration |
49m/s2 ５Ｇor lower |
|
Shock |
98m/s210G or lower except shaft |
|
Max. Temp. for sensor area |
Encoder 85度以下 |
|
About, Induction voltage constant Phase resistance Phase inductance, etc.. Please ask the sales office. |
|
|
* 1: When it is running at 1/5000 of the rated speed, motor may not run smoothly. When load is 100%, the speed control range become a condition of motor not to stop. When matching with NA20 series motors, speed control range will be 1:3000.
* 2: When the power-supply voltage descends, neither the declared power nor the ratings rotational speed are guaranteed.
* 3: To be changed by the power supply impedance
* 4: Please select the no fuse breaker according to the power supply capacity with enough block capacity for protection. |
|
|
In regards of specifications, the mentioned values are based on the surroundings temperature 40 after our recommended heat sink is installed. The allowable radial load value is measure by the position of 20 mm from the installation surface. Each values are at the temperature of 20 to 30. The value without a/the common difference is becoming an authorized value. |
|
|
Heat sink dimensions |
|
50w, 100w |
200 x 200 x T12 Aluminum plate |
|
200w,400w |
305 x 305 x T12 Aluminum plate |
|
600w, 750w |
305 x 305 x T12 Aluminum plate |
|
|
Servomotor Model |
NA80-05 |
NA80-10 |
NA80-20 |
NA80-40 |
NA80-60 |
NA80-75 |
|
Rated voltage |
V |
DC24V ±10％ |
|
Quiet friction torque |
NmMIN |
0.32 |
1.27 |
2.55 |
|
Kgf.cmMIN |
3.25 |
13 |
26 |
|
Consumption power |
W |
5 |
9 |
9.5 |
|
Release time |
ms MAX |
(20) |
(20) |
(50) |
|
Suction time |
ms MAX |
(40) |
(50) |
(80) |
|
Purpose |
For holding still | |
|
|
|
